Surface Mount PCB Assembly

Cost Effective SMT Circuit Board Assembly.

Surface Mount PCB Assembly

We have traditional and innovative surface mount methods available to us on-site to give you a diverse range of Surface Mount circuit board assembly services. We are happy to build one off boards as well as higher volume projects.

Why Use Subtec?
• Quick turnaround – to suit your time-scales.
• Automated assembly – for high volume orders ensuring a speedy turnaround.
• Hand assembly – for low volume orders meaning no set up or tooling charges.
• All boards scanned and scoped during production and prior to dispatch.
• Testing if required
• Ultrasonic Cleaning if required
• Call off order availability.

smt-circuit-board-manufacturing-stockport

Pick and Place System

Our IPulse M4E allows us to place components using camera and vision component recognition, with fiducial correction to ensure accurate repetitive placement. The conveyor allows us to machine build panels up to 300mm x 480mm.

Placement of 0402 components up to large QFP and odd form can be catered for. This capability allows us to assemble more densely populated or smaller circuit boards with complete precision.

Semi-automatic placement
Small quantities of surface mount PCB assemblies can be produced quickly and efficiently using our semi-automatic dispense and placement unit. Manual component placement helps keep costs lower by eliminating tooling costs. Ideal for prototyping and small batch production or for boards which have a wide variety of low volume components.

SMT PCB Assembly

Stencil Printing
Our semi-automatic stencil printer ensures a high level of accuracy & repeatability with lead free solder paste on fine pitch pads.

Reflow solder oven

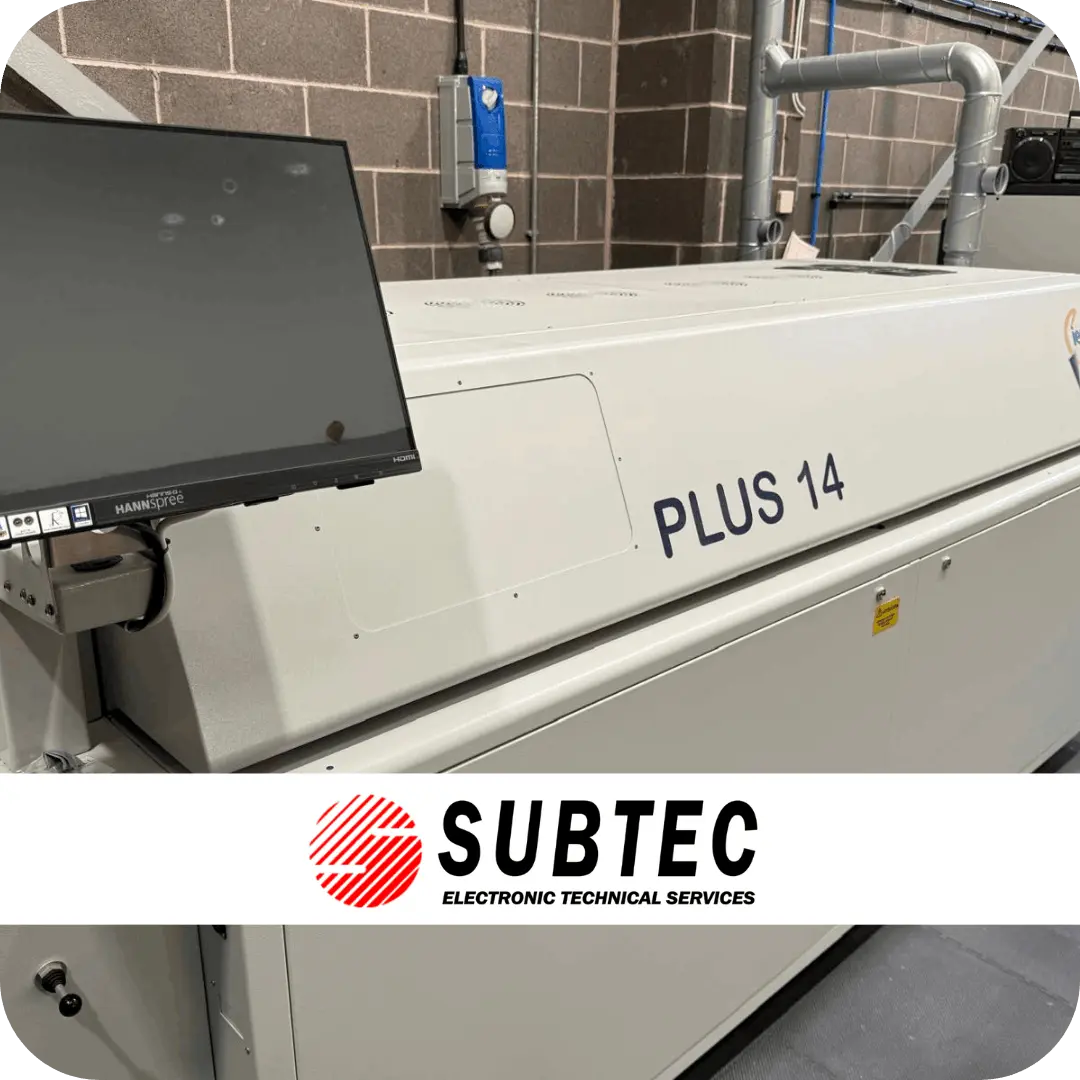

We reflow surface mount builds using our Plus 14 Reflow oven with 5 zones for accurate temperature profiling for both large and small p.c.b.s.

Inspection
Yestek Automated Optical Inspection with component recognition and Lynx Vision Systems are used to help ensure precision detail is of the highest standards.

Ultrasonic Cleaning
We offer Ultrasonic cleaning for the removal of flux and other residue left during the production process aiding inspection and giving a pristine finish, ideal for conformal coating when required.

Need a Quote?
If you would like a quote for our Surface Mount PCB Assembly services
then call now on 0845 330 1284

Reliability With Quality Assured
